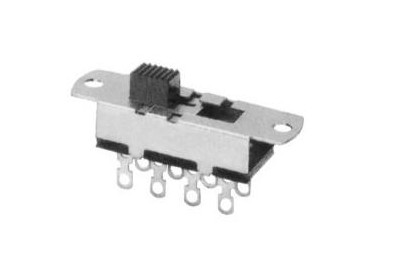

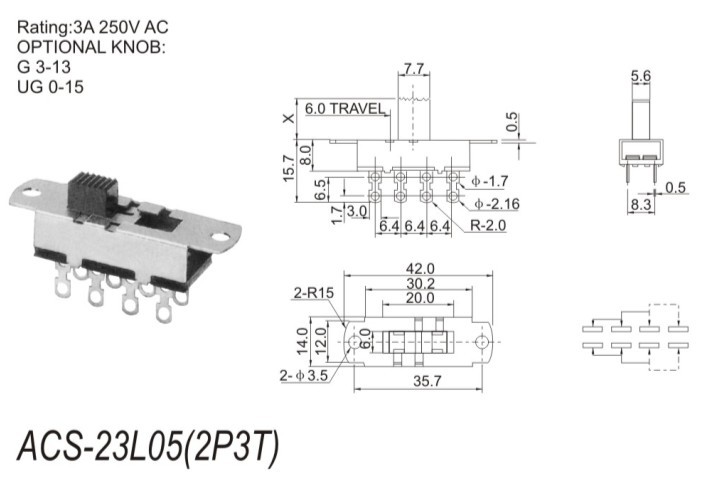

ACS-23L05(2P3T)
Date：2012/11/15 Read：3624
Product introduction：
工作温度范围Operating temperature range：-10℃to+50℃ 额定电流Rating：100mA 12V DC 绝缘电阻Insulation resistance: 50MΩ min.100V DC 接触电阻Contact resistance: 100m Ω max. 操作力度Operating fore:230±70gf 寿命Life time:10000 cycles（依产品而定)
