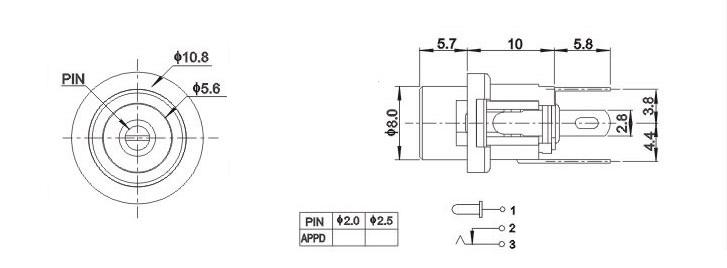

DC-025M
Date：2012/10/15 Read：4185
Product introduction：
额定负荷Rating：DC 50V 0.5A 接触电阻Contact Resistance:50mΩMax 绝缘阻坑Insulation Resistance：100MΩMin 耐高压Withstand Voltage：AC 250V 1Min 焊接温度 Soldering Temper:260±5℃5s 机械寿命Mechanical：10000次 电气寿命Electrical Life：5000次 适用温度 Ambient Temper Used -25℃ to 85℃ 适用湿度Ambient Humidity Used 85%RH 插拔力 Operating Force 3-30N
